Concrete Mix Design: The BRE Method Explained
What is the BRE method?
The BRE method (formerly known as the DOE method) is the standard UK approach to concrete mix design, published by the Building Research Establishment. It's a systematic procedure for selecting mix proportions to achieve a specified characteristic strength, workability, and durability. The current reference is the BRE publication "Design of Normal Concrete Mixes" (2nd edition, 1997).
If you've ever wondered how a mix design goes from "I need C30/37 concrete" to actual batch weights per cubic metre, this is the process.
Step 1: Determine target mean strength
You don't design a mix to hit the characteristic strength exactly. If you did, half your results would fail — that's what "characteristic" means (the value below which 5% of results are expected to fall).
The target mean strength must be higher:
f_m = f_ck + k × s
Where:
- f_m = target mean strength (MPa)
- f_ck = characteristic strength (MPa)
- k = statistical constant (1.645 for 5% defective rate)
- s = standard deviation of test results (MPa)
The standard deviation reflects your quality control. A well-run plant might achieve s = 4 MPa. A less controlled operation might see s = 8 MPa.
Example: For C30/37 concrete (f_ck = 30 MPa) with s = 5 MPa:
f_m = 30 + 1.645 × 5 = 30 + 8.2 = 38.2 MPa
This is a critical point: poor quality control doesn't just cause occasional failures — it forces you to over-design every batch to compensate. Good QC saves cement and money.
Step 2: Select free water/cement ratio
Using the target mean strength and the cement type, you read off the required w/c ratio from BRE Table 2 (or the equivalent curve).
The relationship between strength and w/c ratio depends on the cement type and aggregate type:
- OPC with crushed aggregate: Typically achieves higher strengths at a given w/c than with uncrushed (natural/rounded) aggregate.
- OPC with uncrushed aggregate: Lower strengths due to the smoother aggregate surface and weaker paste-aggregate bond.
For our example (f_m = 38.2 MPa, OPC, crushed aggregate), the table gives approximately w/c = 0.48.
Now check against the durability requirement. If the exposure class demands a maximum w/c of 0.50, we're fine. If it demands 0.45, we must use 0.45 regardless of strength — durability governs.
Step 3: Determine free water content

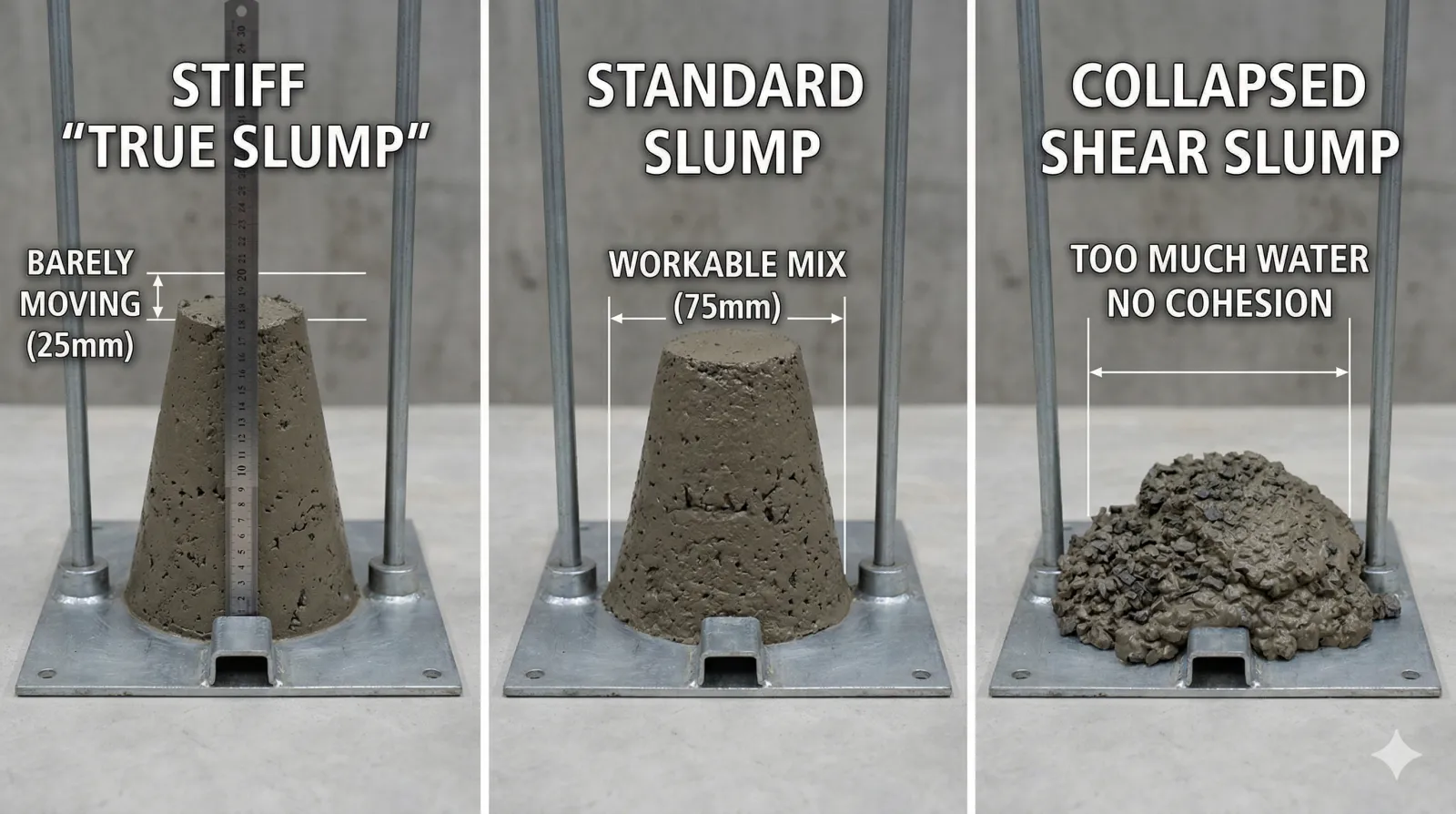

The free water content depends on the workability requirement (slump or Vebe time) and the aggregate type and maximum size.
From BRE Table 3:
| Max aggregate size | Slump 30–60 mm (uncrushed) | Slump 30–60 mm (crushed) | |---|---|---| | 10 mm | 180 kg/m³ | 205 kg/m³ | | 20 mm | 160 kg/m³ | 185 kg/m³ | | 40 mm | 140 kg/m³ | 165 kg/m³ |
Crushed aggregates demand more water because of their angular shape and rough surface texture. Larger maximum aggregate sizes need less water because of the reduced total surface area.
For 20 mm crushed aggregate at 30–60 mm slump: W = 185 kg/m³.
If using a combination of crushed coarse and uncrushed fine aggregate, interpolate:
W = (2/3 × W_fine) + (1/3 × W_coarse)
This weighting reflects the disproportionate influence of fine aggregate on water demand.
Step 4: Calculate cement content
With water content and w/c ratio known:
C = W / (w/c)
C = 185 / 0.48 = 385 kg/m³
Check this against the minimum cement content for the exposure class. EN 206 and BS 8500 specify minimums (e.g., 300 kg/m³ for XC3/XC4). If your calculated cement content is below the minimum, use the minimum and recalculate the effective w/c.
Also check the maximum cement content. Excessive cement (above ~550 kg/m³) causes problems: thermal cracking, increased shrinkage, and higher cost.
Step 5: Determine total aggregate content
The BRE method uses the concept of wet density. For normal-weight concrete, the wet (fresh) density depends on the free water content and the relative density of the aggregates:
From BRE Figure 5, for a free water content of 185 kg/m³ and aggregate relative density of 2.65:
D ≈ 2380 kg/m³ (fresh density)
Total aggregate content:
A = D − C − W
A = 2380 − 385 − 185 = 1810 kg/m³
Step 6: Determine fine/coarse aggregate proportions
The proportion of fine aggregate depends on:
- Maximum aggregate size
- Workability (slump)
- w/c ratio
- Grading of the fine aggregate (percentage passing 600 μm)
From BRE Figure 6, for 20 mm max size, w/c = 0.48, slump 30–60 mm, and a fine aggregate with 60% passing 600 μm:
Fine aggregate proportion ≈ 35%
So:
- Fine aggregate = 1810 × 0.35 = 634 kg/m³
- Coarse aggregate = 1810 × 0.65 = 1176 kg/m³
Summary of the designed mix
| Component | Quantity (kg/m³) | |-----------|-----------------| | Cement (OPC) | 385 | | Free water | 185 | | Fine aggregate (SSD) | 634 | | Coarse aggregate (SSD) | 1176 | | w/c ratio | 0.48 | | Total | 2380 |
SSD = saturated surface-dry condition. On site, you'll need to adjust for the actual moisture content of the aggregates.
Adjustments and corrections
The initial mix is a starting point. In practice, you'll need trial mixes to verify performance.
Aggregate moisture correction: Aggregates are rarely in SSD condition. If the fine aggregate has 5% surface moisture, add 5% of 634 = 31.7 kg to the aggregate weight and subtract the same from the water.
Admixture adjustments: If using a plasticiser or superplasticiser, you can reduce the water content by 10–30% while maintaining the target slump. Recalculate the w/c ratio and cement content accordingly.
Strength adjustment after trial mixes: If trial cubes come back at 42 MPa when you targeted 38.2, you're over-designing. You can increase the w/c slightly and reduce cement — saving money without compromising compliance.
Common pitfalls
Ignoring the margin. Designing to the characteristic strength instead of the target mean strength is the most consequential mistake. You'll have a 50% failure rate.
Using book values without trials. The BRE tables give starting points. Local materials behave differently. Always verify with trial mixes.
Forgetting aggregate moisture. A 3% error in moisture content changes your effective w/c by roughly 0.02. On a marginal mix, that's the difference between passing and failing.
Over-specifying. Specifying C40/50 for a house foundation in exposure class XC1 is wasteful. Design for what the structure and environment actually require.
The BRE method is methodical and well-proven. It takes practice, but once you've worked through it a few times, it becomes second nature. Try our mix ratio calculator to run through the process quickly and explore how changing inputs affects the final proportions.
